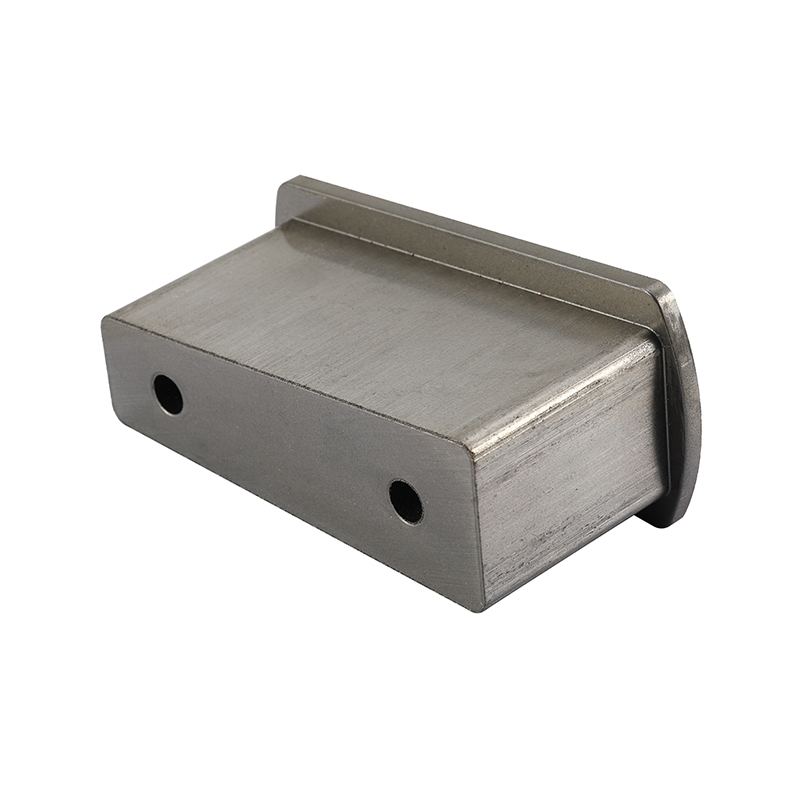

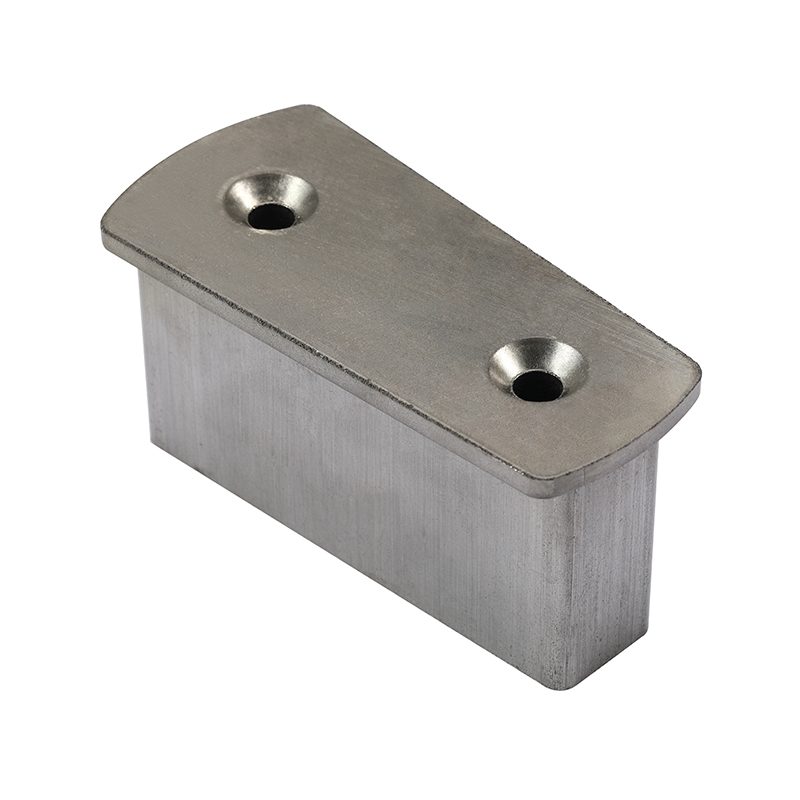

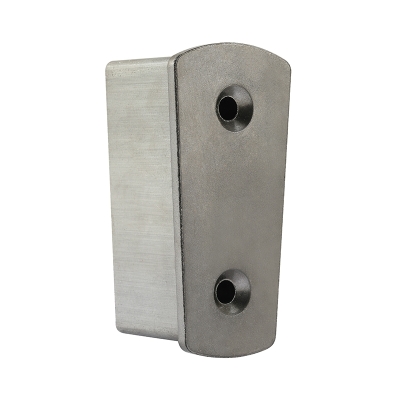

Raw material: high purity iron powder coated with insulating layer
Size (mm): L160-W76-H18, sizes and shapes of soft magnetic composite cores can be customized
Density: about 7.4g/cm³
Heat treatment temperature: about 550°C
Surface treatment: No
Advantages of soft magnetic composites:
Cost-efficient
• Net-shaped 3D components made with very low scrap rate
• Pre-wound slide-on and tightly wound coils
• Simple, automated assembly with lower investments
Compact design
• Space-efficient coil/core assemblies
• Topologies for short axial length
• High frequency operations at low losses
High performance
• High torque and high power density
• Thermally isotropic core and tight coils enables enhanced cooling
• High efficiency concepts possible
Raw material: high purity iron powder coated with insulating layer
Size (mm): L160-W76-H18, sizes and shapes of soft magnetic composite cores can be customized
Density: about 7.4g/cm³
Heat treatment temperature: about 550°C
Surface treatment: No
